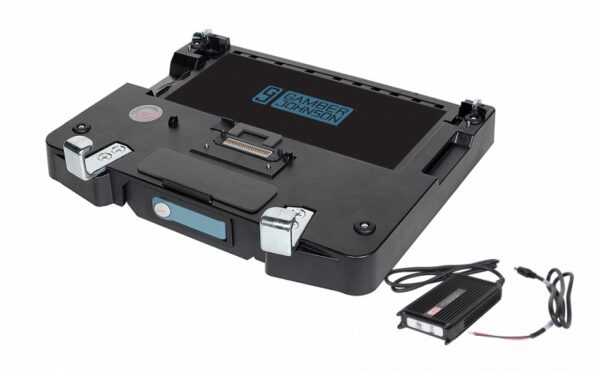

Panasonic Toughbook 54/55 Docking Station with LIND 120W Auto Bare Wire Leads Power Supply, Lite Port, No RF - 7170-0971-00

Gamber-Johnson Toughbook 54 docking station kit includes Panasonic Toughbook 54 docking station with Lite Port Replication, No RF (Item No. 7160-0577-20) and Lind external power supply (Item No. 7300-0461).

Antenna Pass-Through

• None

Port Replicators

• Ethernet - RJ45
• Fully Powered USB 3.0 (2) - 9 pin
• Serial - D-sub 9 pin
• Input Voltage - 15.6 V DC
• RF Switch

Power Supply

• Includes external Lind 120W auto bare wire leads power supply

Features

• Special docking connector pin protection – helps to prevent accidental pin damage by providing additional protection around and in between each docking pin
• Designed to MIL-STD 810G test procedures and complies with FCC Class A standards
• Small footprint - designed to maximize available space inside of vehicle
• Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as Toughbook Certified
• Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system
• Spring-loaded docking connector to ensure connectivity in the roughest terrain
• Front safety bracket and rear corners ensure proper alignment and docking connectivity
• Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked.
• This docking station accommodates the optional modular expansion area on the Toughbook 54/55 computer
• Special access area for smart card reader makes it easy to insert and eject card
• Push button latch with keyed lock for theft deterrence:
  • Push the latch to release the docking connector
  • Insert computer and push latch closed to dock computer
• Can be used with Motion Attachments with the VESA 75mm hole pattern only
• Rugged composite/steel construction with black powder coat finish for long-term durability
• Antenna switch position:
  • Switch set toward outside of dock: Uses exterior antenna
  • Switch set to inside of the dock: Uses laptop antenna

More info here
